Goldin Metals - R Panel | |
 |

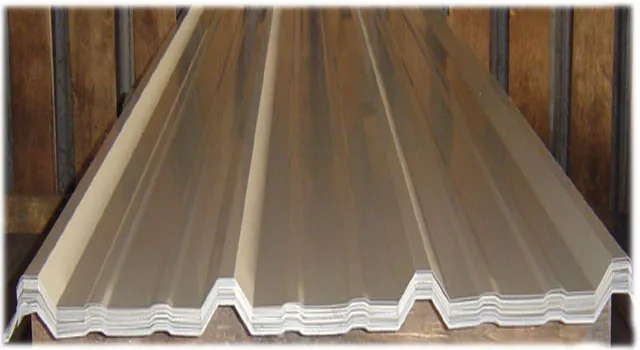

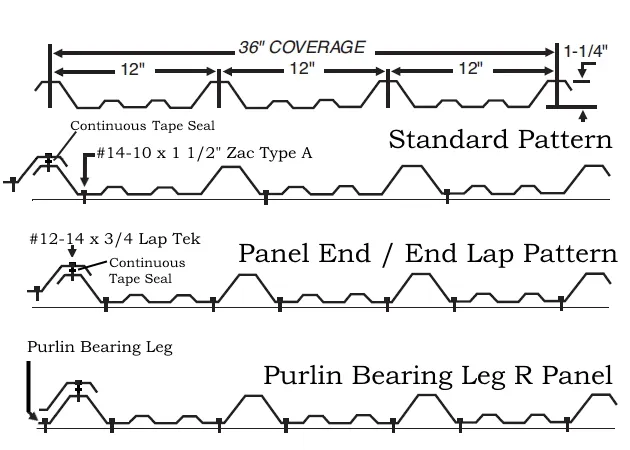

The R-Panel features a 1 1/4 inch high rib on twelve inch centers with intermediate stiffening ribs. Used for both roofs and walls, the R-Panel is one of the most versatile panels on the market due to its strength and design. The R-panel is typically used in Commercial, Agricultural, and Industrial applications. However, it is also commonly used for residential applications. |

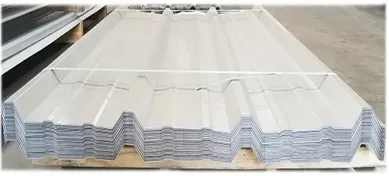

The R-Panel with a Purlin Bearing Leg is a structural panel (which means it does not require plywood). This panel can span purlins up to 5' and maintain 140 MPH wind rating on most designs based on the Florida Building Code approval installation guidelines. The R-Panel is available in a number of different gauges,
lengths, and colors.
|
|
|
|
|

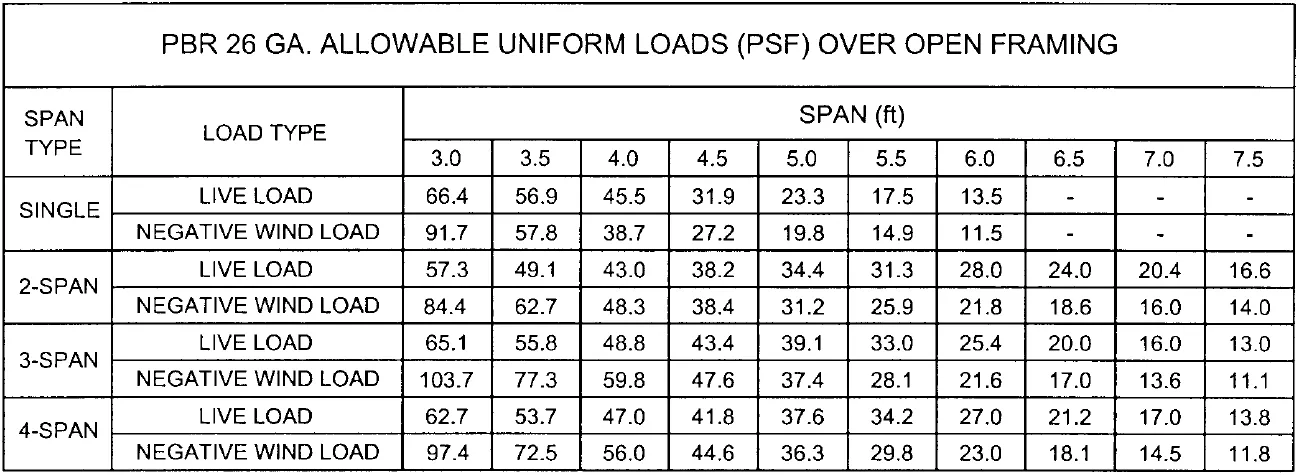

Wind Load Chart for Purlin Bearing Leg R Panel |
|
|
|
